How to Change a Double Wall Socket (UK): A Step-by-Step DIY Guide
Change a double wall socket UK. Are you looking to upgrade your home with modern, decorative faceplates, or do you simply need to replace a damaged unit? Changing a double wall socket is a perfect entry-level DIY task that can significantly improve the look of your room.
In this guide, I’ll show you how to safely replace a standard UK twin-gang 13 amp socket with a premium Knightsbridge Screwless Faceplate in brushed stainless steel.

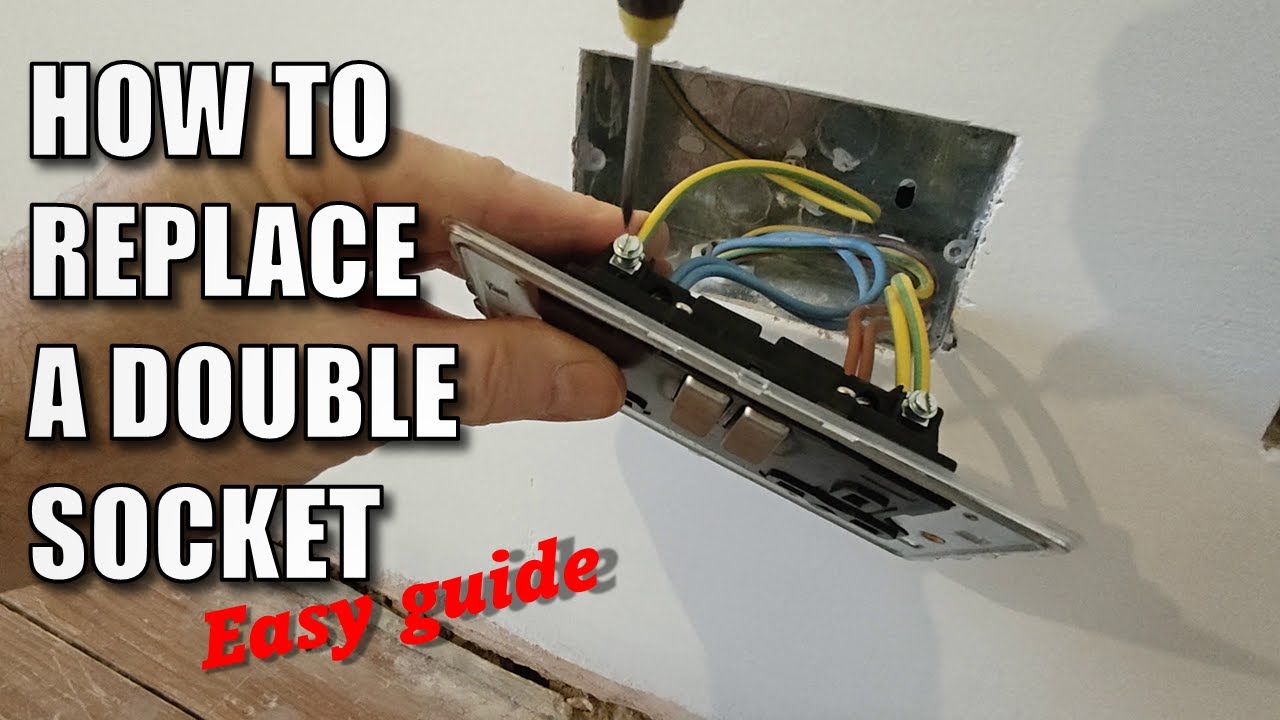

Watch the Full Step-by-Step Tutorial
Safety First: Isolating the Power
Before you touch any wiring, you must isolate the circuit. Go to your consumer unit (fuse box) and switch off the circuit breaker for the sockets you are working on.
Pro Tip: Never trust a label. Use a plug-in tester or a multimeter to confirm the power is truly off before unscrewing the old socket.
Top 5 Mistakes to Avoid When Changing a Socket
Even a simple job can go wrong if you rush. Here are the most common pitfalls to watch out for along the way:
- Stripping Too Much Copper: Exposed live copper sitting behind the socket is a major fire risk. Aim for 10–12mm of bare wire.
- The “Screw Through Wire” Trap: When pushing the socket back, wires can get trapped. If a mounting screw pierces the insulation, it can make the metal faceplate live.
- Forgetting to Earth the Metal Backbox: If you have a metal backbox, it must be earthed. Use a “fly lead” from the socket’s earth terminal to the backbox.
- Loose Connections: UK ring circuits often have two sets of wires. If one is loose, it can cause “arcing.” Always perform a tug test on every wire.
- Crushing Wires: Forcing a socket into a shallow box can damage the insulation. Ensure your wires are folded neatly in a ‘concertina’ shape.

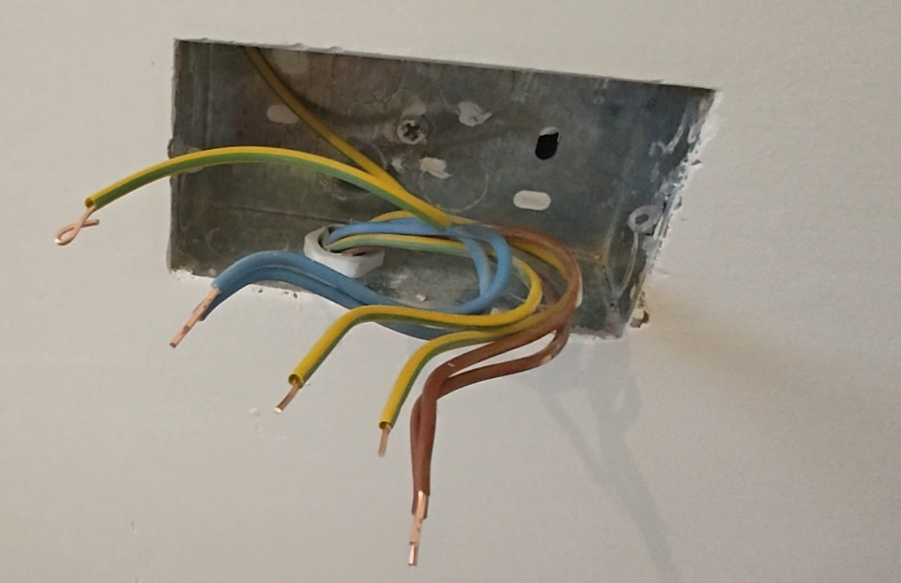

Understanding the Wiring (New vs. Old Colors)
In the UK, we currently use the “Harmonised” colour code. However, if your home was built or rewired before April 2004, you will see different colors.
| Connection | New Colour (Post-2004) | Old Colour (Pre-2004) |
| Live (L) | Brown | Red |
| Neutral (N) | Blue | Black |
| Earth (E) | Green & Yellow | Bare Copper / Green |
Note: If you have bare copper earth wires, always slide a green/yellow earth sleeve over them before connecting.
Step-by-Step Installation
1. Prepare the Chassis
The Knightsbridge model I’m installing is a screwless design. This means the chassis (the part with the switches) is installed first, and a decorative plate clips on later for a clean finish.
2. Terminate the Connections
Locate the letters stamped into the back of the socket:
- L (Live): Insert the brown (or red) wires.
- N (Neutral): Insert the blue (or black) wires.
- Earth Symbol: Insert the yellow/green wires.
The Tug Test: Tighten the screws and give each wire a firm pull. If it moves, re-seat it and tighten again. Ensure no bare copper is visible outside the terminal.
3. Folding and Fixing
Carefully fold the wires into the backbox. Avoid placing wires directly behind the screw holes. Align the socket with the threaded inserts and tighten the mounting screws until the unit is level and flush with the wall.
4. Snap on the Faceplate
For screwless models, align the clips and push the decorative plate onto the chassis until it clicks into place. Turn the power back on and test!
Parts : I sourced the wall socket from Amazon. Hre are the links if you want to check them out. Its a screwless stainless steel socket. There are some other good products from Knightsbridge to explore.
FAQ : Change a Double Wall Socket UK
Is it legal to change my own electrical sockets in the UK?
Yes. Under Part P of the Building Regulations, replacing an existing socket on a “like-for-like” basis is considered non-notifiable work. This means you do not need to inform building control or hire an electrician, provided you are competent to do the work safely. However, installing a new socket in a new location or adding a new circuit usually requires professional certification. Take a look at the UK Domestic Wiring Guide article for more information.
I have red and black wires—is this safe?
Yes, but it indicates your home’s wiring was installed before April 2004. In this “old” colour code, Red is Live and Black is Neutral. When installing a new socket, connect the Red wire to the ‘L’ terminal and the Black wire to the ‘N’ terminal. (Refer to the table in the main guide for the full colour-code comparison).
Why are there two sets of wires in my socket?
Most UK homes use a “Ring Main” circuit. This means the electricity travels in a loop, entering the socket from one cable and leaving through another to power the next socket in the chain. When replacing the socket, both sets of wires must be securely terminated into the same respective terminals (Live with Live, Neutral with Neutral).
My new metal faceplate doesn’t have an earth terminal. What do I do?
Almost all decorative metal faceplates will have an earth terminal on the chassis. If it doesn’t, it is likely a “Class II” double-insulated component, but these are rare for sockets. Always ensure your earth wires are connected to the earth terminal on the socket chassis. If you have a metal backbox, you should also run a small “fly lead” (a scrap of earth wire) from the socket’s earth terminal to the backbox’s earth terminal.
What should I do if the wires are too short to reach the new socket?
Never put the wires under tension. If they are too short, you can extend them using a maintenance-free connector (like a Wago connector) and a small piece of matching 2.5mm² Twin and Earth cable. Ensure the joint is tucked neatly into the backbox.
Can I replace a single socket with a double socket?
Yes, but you will likely need to replace the backbox in the wall, as a single backbox is too small for a double socket. You can buy “converter sockets” that allow a double faceplate to fit onto a single backbox, though they sit slightly further out from the wall.
Why is my plug-in tester showing a “No Earth” fault?
This usually means an earth wire has come loose during installation or was never connected properly in the first place. Turn off the power, unscrew the socket, and check that all green/yellow wires are firmly gripped in the earth terminal. Perform a “tug test” to be sure.
Can I use a metal faceplate on a plastic backbox?
Yes. However, because the backbox is plastic, it cannot be earthed. You must ensure the earth wires are securely connected to the terminal on the metal faceplate itself to ensure the plate is safe to touch.
